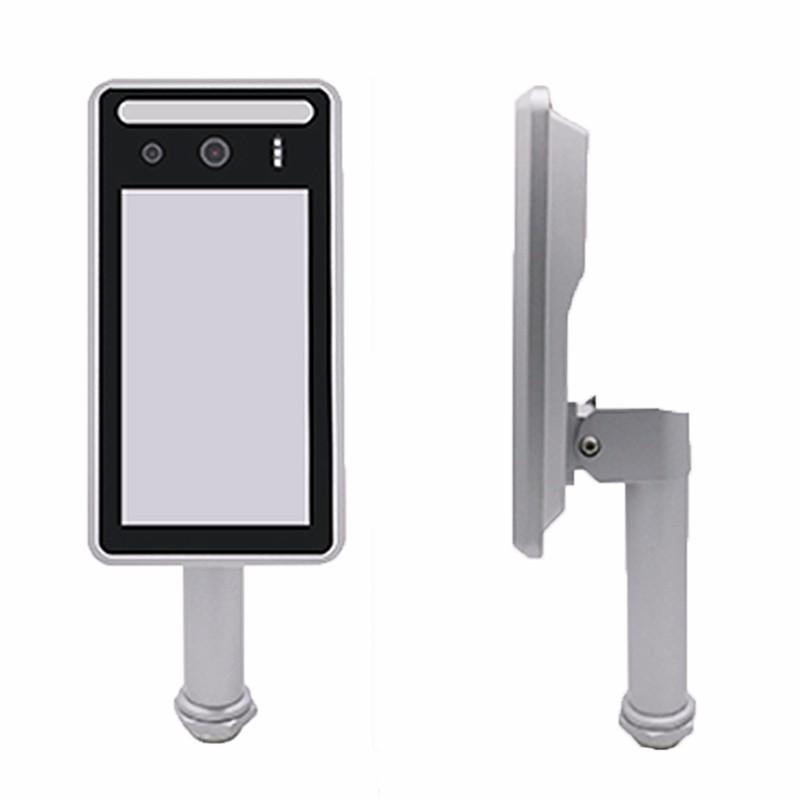

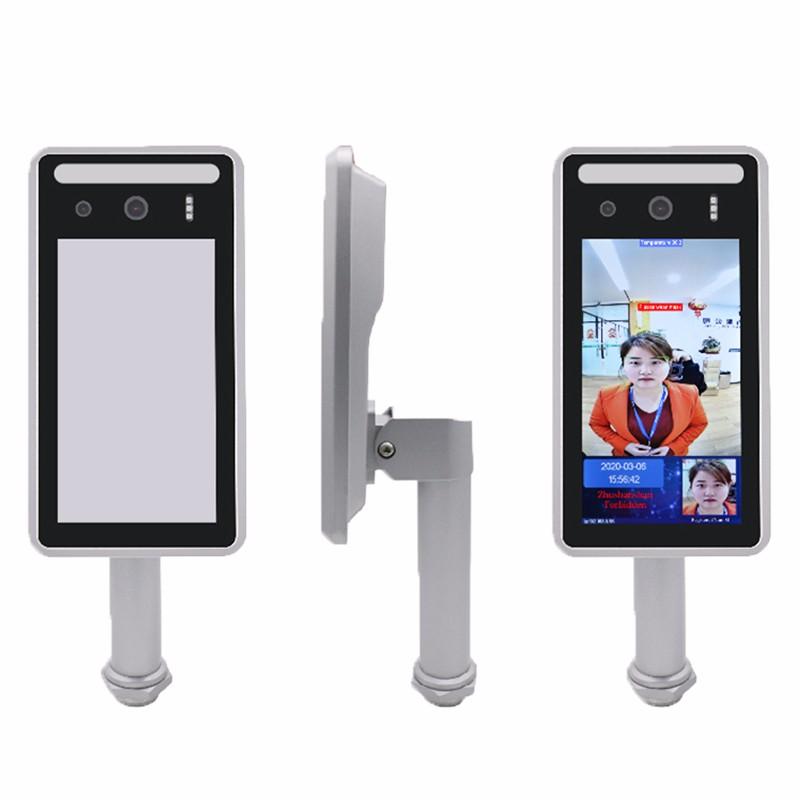

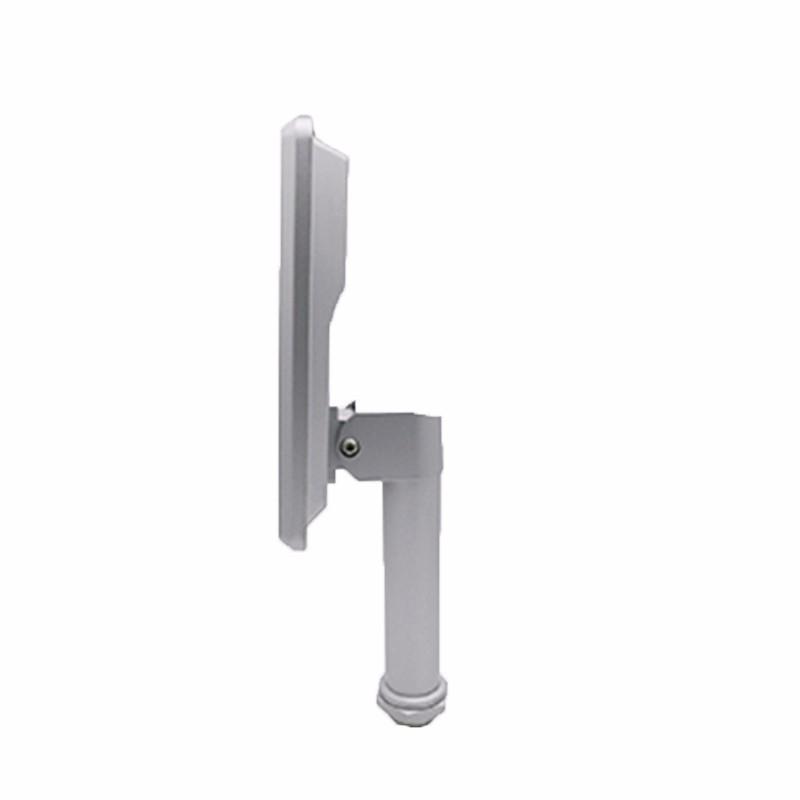

Human Body Face Recognition Temperature Measurement Detection Measuring QR Code Time Attendance Access Control System Terminal

Special Features: Built-in Camera, Time & Attendance

Face capacity: 24K

Processor: Sextuple processor + 2G memory + 32G flash

Lens: 6mm

Product Advantage:

our own developed face tracking exposure algorithm(linear mode), WDR≥110DB

own patent protected file storage system (not Linux's original file system)

used all glass material aspheric lens

adopted own top-class face recogntion algorithm

Stable quality control, all electronic components choosed from
first-line suppliers, such as Samsung brand memory and Flash

Hardware&software Customerized service, protect customer own design and confidential data

Features&Advantages

Support Real Time Human Body Detection .

Using Linux operating system, better system stability.

Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s.

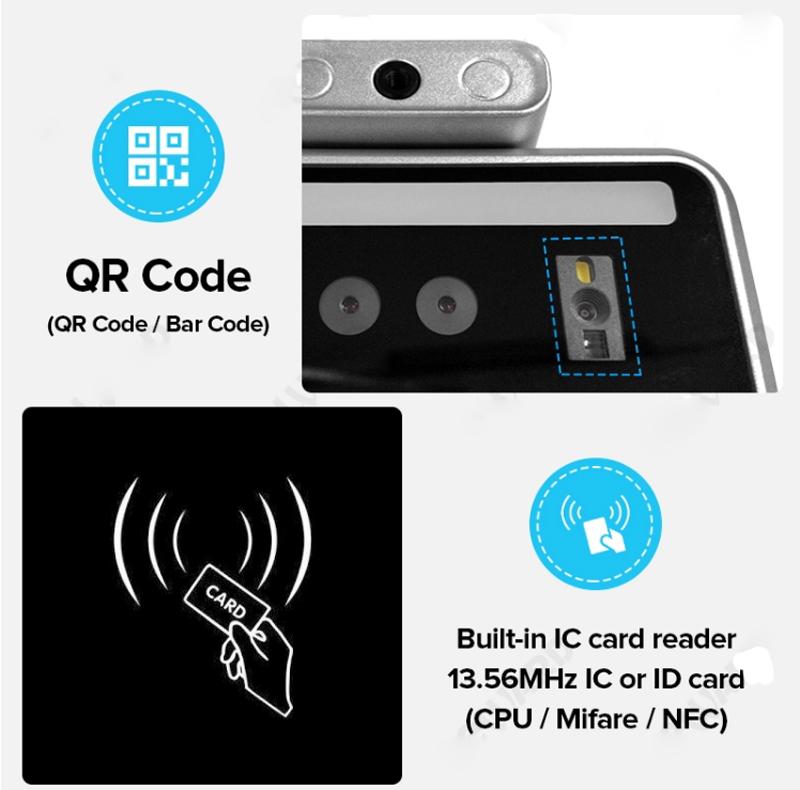

Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.

Support for AD file playback.

Support PIR human body sensing wake-up function.

Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.

Support 65000+ face matching library and 250,000 face recognition records.

Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.

Support tracking of personnel movements under strong backlight conditions.

The host supports an external ID card reader (For Chinese ID card).

The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.

Specifications:

Hardware
Processor	Sextuple processor + 2G memory + 32G flash
Operating system	Linux Operating system
Storage	Support TF card storage
Camera module	U21R
Sensor	1/2.8" Progressive Scan CMOS
Lens	6mm(optional)
Performance
Recognition height	1.2~2.2 meters,Angle can be adjusted
Recognition distance	0.5~5 meters,depends on lens
Face angle	30 degrees left and right, 30 degrees up and down
Recognition time	Less than 1 second
Function	Support 250,000 capture library, real-time capture, support 65,000 list library
Interface
Switch inputs	1ch switch input
Power	DV12V/3A
Network Interface	1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface	1ch Wiegand interface input/output
USB interface	1ch USB interface
Camera Data
Camera	Two cameras: 1x B/W camera ; 1x color camera
Effective pixels	2MP,1920*1080
Min Illumination	Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR	≥50db(AGC OFF)
WDR	≥120db
Video Coding	H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution	Main stream:50Hz: 25fps (1920×1080,1280×720) 60Hz: 30fps (1920×1080,1280×720)

	Sub stream:720576,1-25(30)fps/640480,1-25(30)fps 320*240,1-25(30)fps
