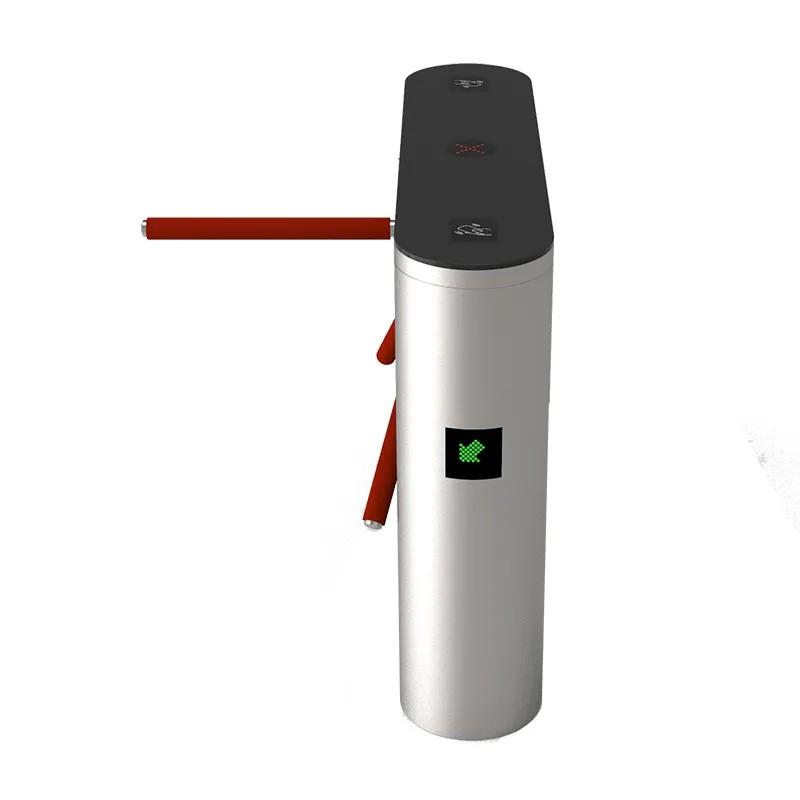

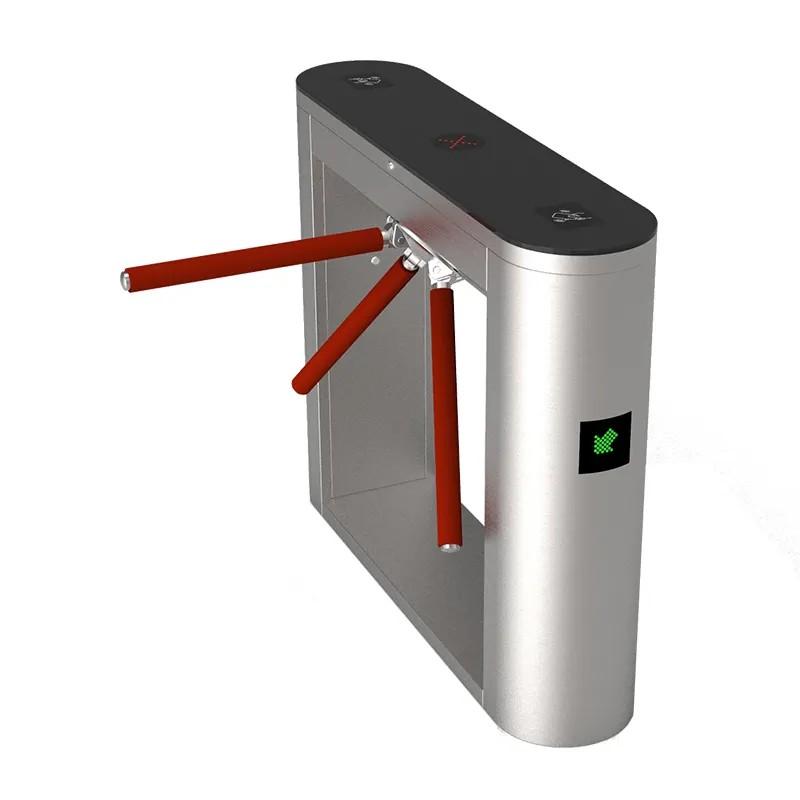

Waterproof Tripod Barrier Gate RFID Card QR Code Reader Access Control OEM/ODM Tripod Turnstile Professional Mechanism for Gym

Description

Product Application

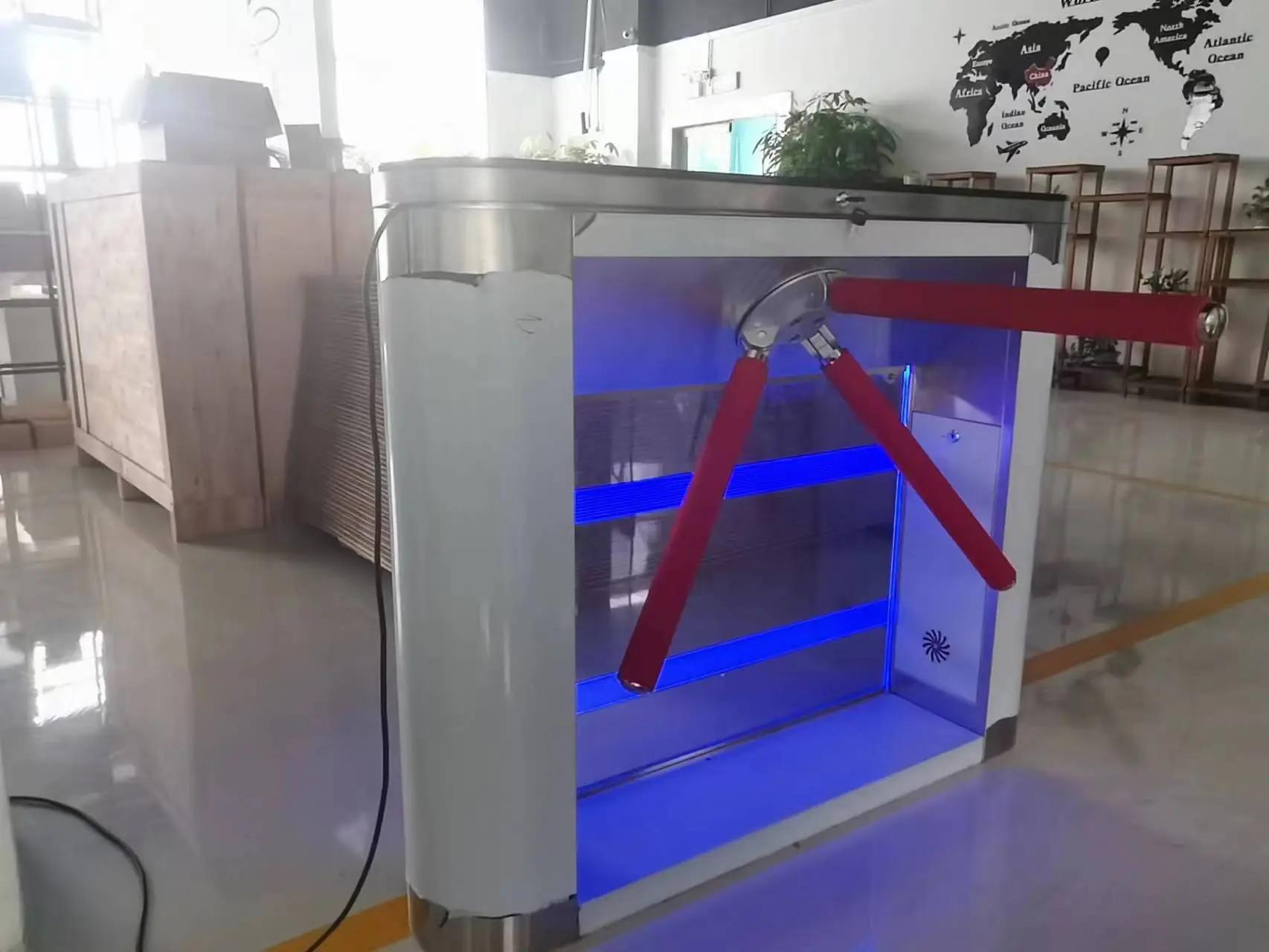

* Unusual Tripod Turnstile black & white design Powerful electromagnetic lock. SUS304 stainless steel with drawing process on its surface, to make it scratch-resistance. Standard outer electric interface. Microprocessor and digital positioning technology.

Functions and features	full-auto	semi-auto	manual
1,Malfunction self-check and alarm reminder, ease of maitenance and use	√	×	×
2,Running method can be set through small buttons on the control panel	√	√	×
3,How arm reacts in emergency	drop automatically	drop automatically	no movement
4,How arm reacts when power on	go up automatically	go up by hand	no movement
5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)	√	√	×
6,Compatible for access control system, consumption system, E-ticekt  system, biometric system, ESD system and so on	√	√	×
7,Unique positioning, self reset, one arm always in the  horizontal level	√	√	×
8,LED lamp indicator	√	√	×
9,when open signal is given, arm rotate to a certain degree	√	×	×
10,how arm reacts when people passing	rotate automatically	push by hand	push by hand
11,one direction or bi-direction flow control	√	√	adjust by hand
12,work directly with PC for remote control and management	√	√	×

Features:

Tripod Turnstile Gate Parameters：

○ Tripod Turnstile Material: 304/316 stainless steel(option)

○Turnstile Specification：1200*280*990mm

○ Tripod Turnstile Work Voltage: AC220V±10% 50HZ±10%

○ Core: DC24V solenoid valve

○ Arm length: 500mm

○ Max bearing force : 65KG

○ Max lane width: 550MM

○ Tripod Turnstile Rotation direction for arm: left or right, or bi-directional

○ Led direction indicator: 0ne or two

○ Card reading window: standard or customized

○ Work environment: indoor or outdoor, 10℃～70℃ , relative humidity: ：≤90%, no condensation

○ Tripod Turnstile Barrier open time: 0.2s ○ Transit speed: 30 people/minute

○ Emergency : auto drop for arm

○ Turnstile Normal work life: 3,000,000 times

○ Communication interface: RS 485, distance ≤1200m

○ Input interface: relay switch signal, 12V level signal or 12V pulse signal, pulse width＞100ms,drive current ＞10mA

Application:

Tripod Turnstile Gate is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. Provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. Arm drops off in condition of emergencies. Tripod Turnstile Gate is widely used in bus station, port, subway, factory, mansion, residential area, hotel, and companies and so on any place that requires a smart flow control.
