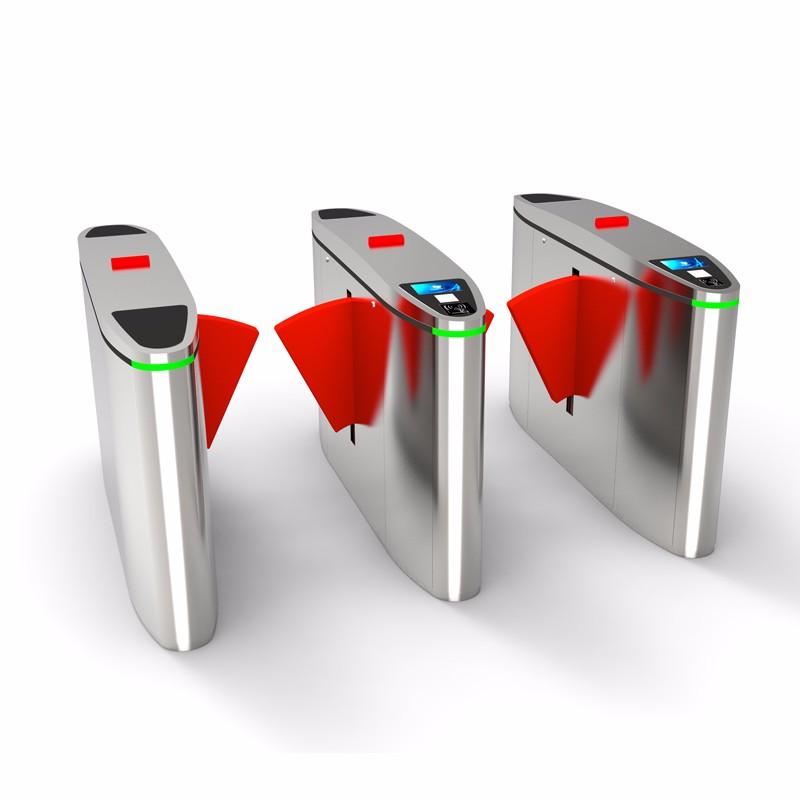

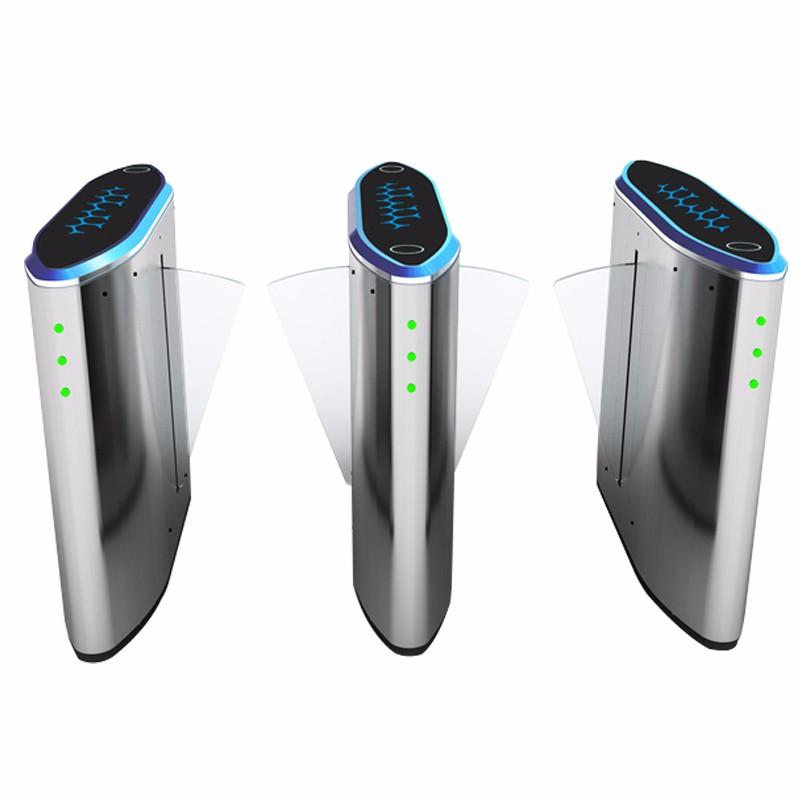

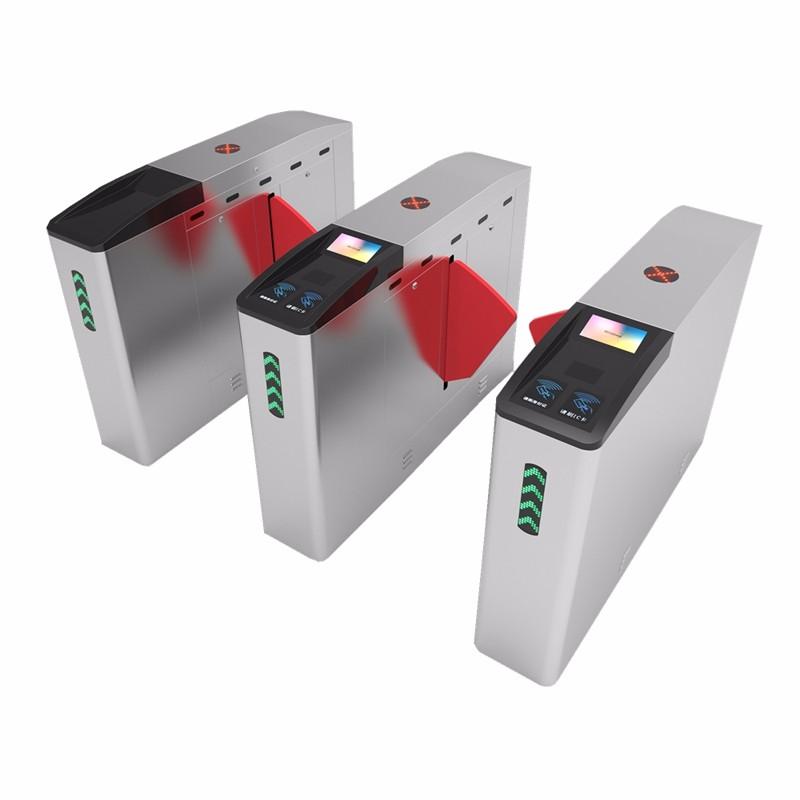

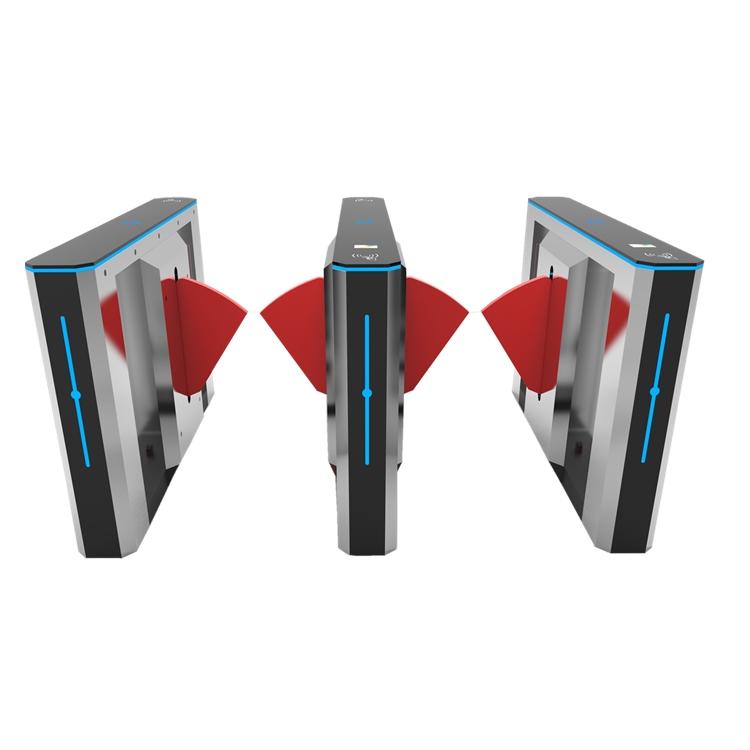

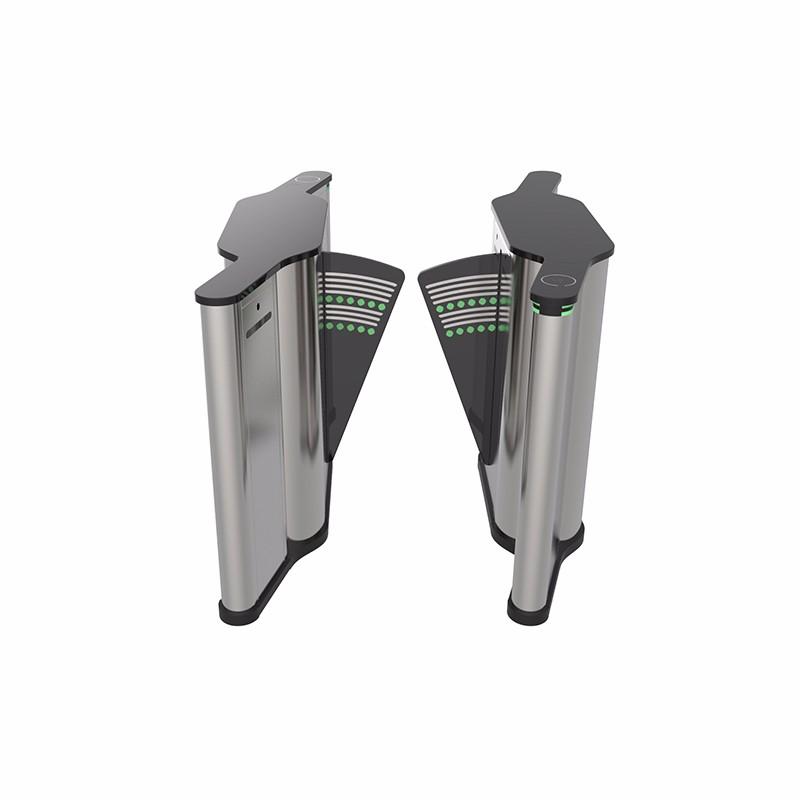

Automatic Flap Barrier Gate Turnstile Access Control System

Automatic Flap Barrier Gate Turnstile Access Control System

Material: 1.2mm SUS304 wire drawing 400#

Size: 1400x300x990mm

Passage width: ≤550mm

Passage throughout: 35-40 persons/minute

Description

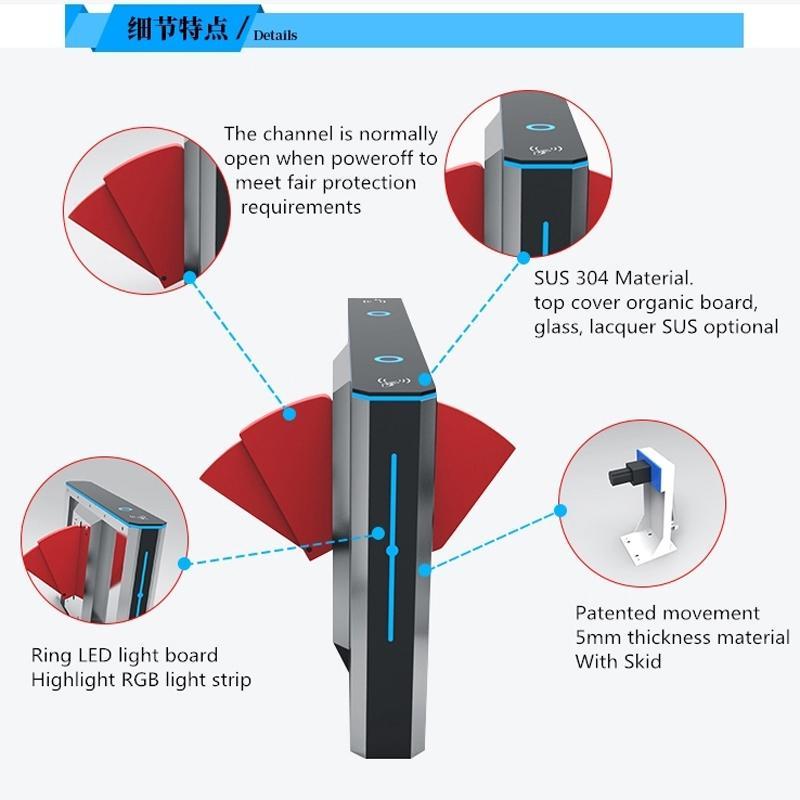

Flap Barriers Turnstile Features:

Reliability
SUS304 stainless steel casework ensure long-lasting durability.
High quality electrical components.

Safety Features
Barriers retract automatically during power outage with capacitor board installed.
All smooth finish. No exposed screws.
Ergonomic design makes card and fingerprint authentication fast & simple for users.

Built-in Reader Integration

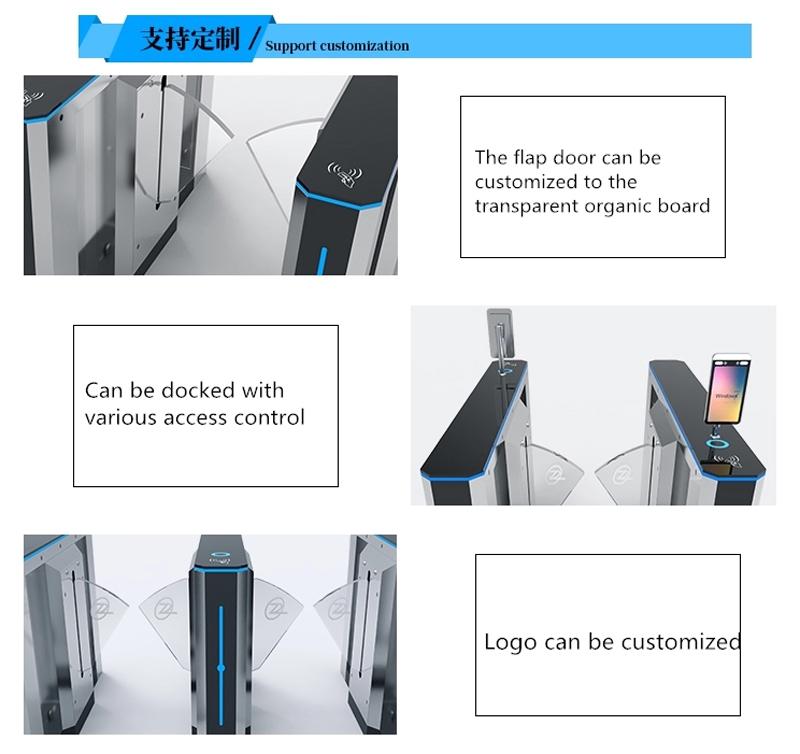

SE1000 Pro series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
SE1000 Pro series and associated access control readers are all factory-tested prior to shipping.
Granding provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry.

Simplification

LCD on the flap barrier control board, easy operation

Flap Barrier Turnstile Datasheet:

Model	SE1000 Pro
Power Requirments	AC100-120V/200-240V,50/60HZ
Power Consumption	Starting 82W
Power Consumption	Standby 29W
Power Consumption	Unlock 76W
Working Temperature	-28C to 60C
Working Humidity	5%-80%
Working Environment	Indoor/outdoor(if Sheltered)
lane width(mm)	600
Footprint(mm*mm)	1200*870
Dimension(mm)	L=870,W=300,H=1000
Dimension with packing(mm)	L=1000,W=840,H=1090
Net weight(KG)	100
Weight with packing(KG)	183
LED indicator	Y
Cabinet material	SUS304 Stainless Steel
LID Material	SUS304 Stainless Steel
Barrier Material	Acrylic
Barrier movement	Retracting
Emergency Button Input	Y
Security Level	Medium
MCBF	2 million
