Description

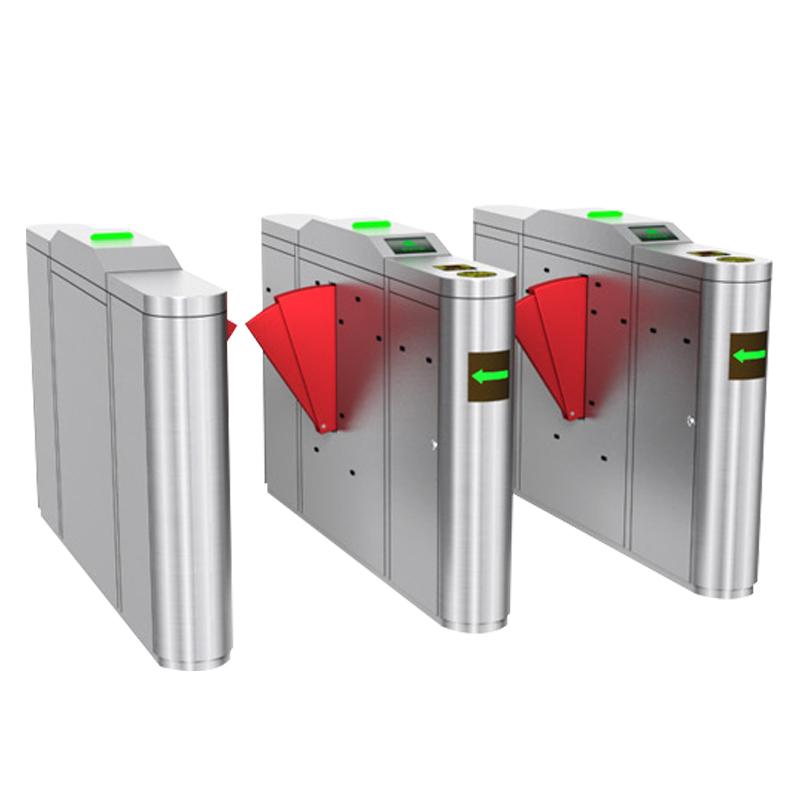

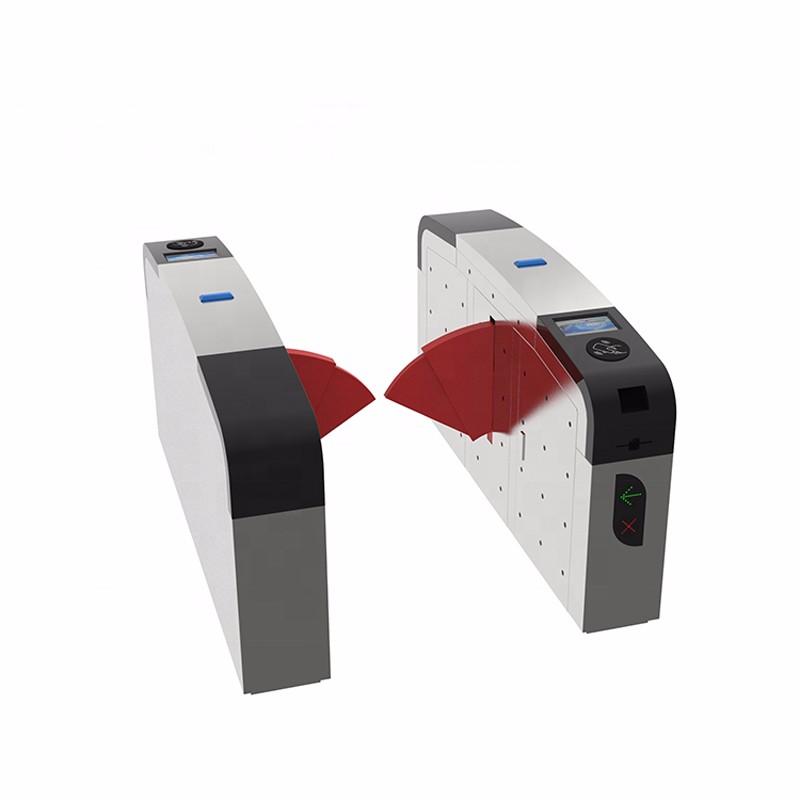

Flap Barriers Turnstile Features:
1.Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life.
2.With the power drop-shot function, can also carry out additional remote control rod ,it in the management and deal with emergencies .
Prompted with the direction of LED lights.
Can be set "with memory " or "not to bring memory " function (when set to "bring Memory", the brush can be used in a scenic spot ticket too many people groups occasions).
With automatic reset function ,namely ,access to lock permissions, set at the time Three is no inter-lock ,three roller gates automatic cancellation of this authority back to the lock Set state.
Waterproof ,sunscreen ,cold and high temperature.
Installation with personalized interface, compatible with IC,ID cards and other smart cards.
A unified ,standard external electrical interface with a variety of reading and writing equipment Freely articulated ,easy system integration .
Flap Barriers Turnstile Technical Parameters:
Model No |
SE-FB04 |
Material |
1.5mm 304# Stainless Steel |
Dimension |
1,200*280*1000mm (L*W*H) |
Channel width |
500-600mm |
40mm |
|
Open or close time |
1 second |
Passage direction |
Single or Bi-directional |
Flow of passage |
30-40 passengers per minute |
Motor |
DC Brush motor (24v) |
Emergency mode |
Free egress when fire signal triggered |
Power supply |
AC220±10% V,50HZ |
Power output |
DC12V |
Control typw |
RFID/Barcode/Fingerprint control |
Working temperature |
-45℃- 80℃ |
Lifetime |
Over 3 million times |
ODM/OEM service |
Available |
Usage |
Indoor or outdoor |
Gross weight |
65kg |
Warranty |
One Year |

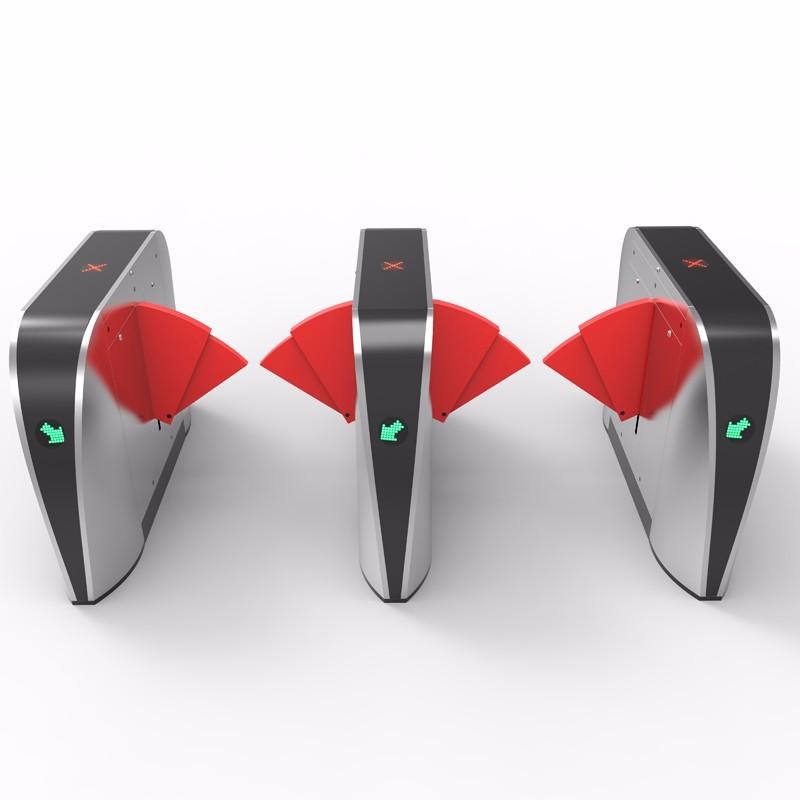

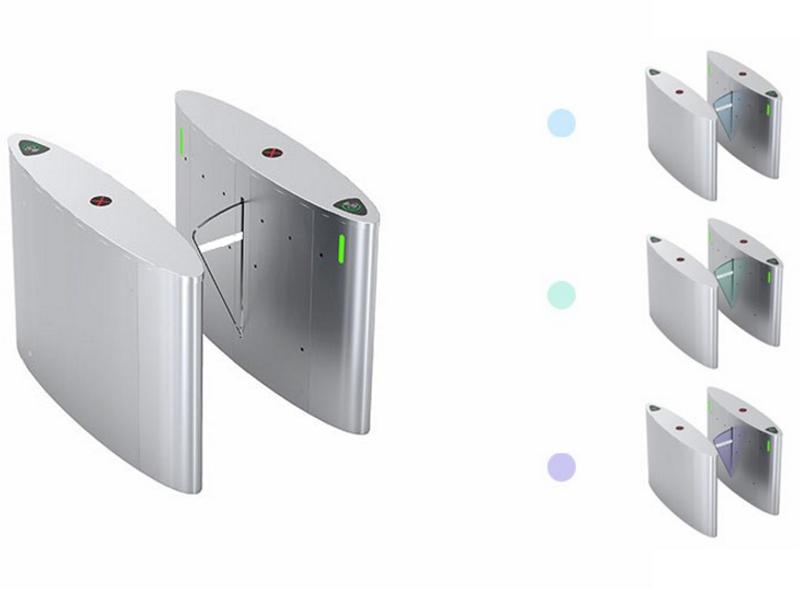

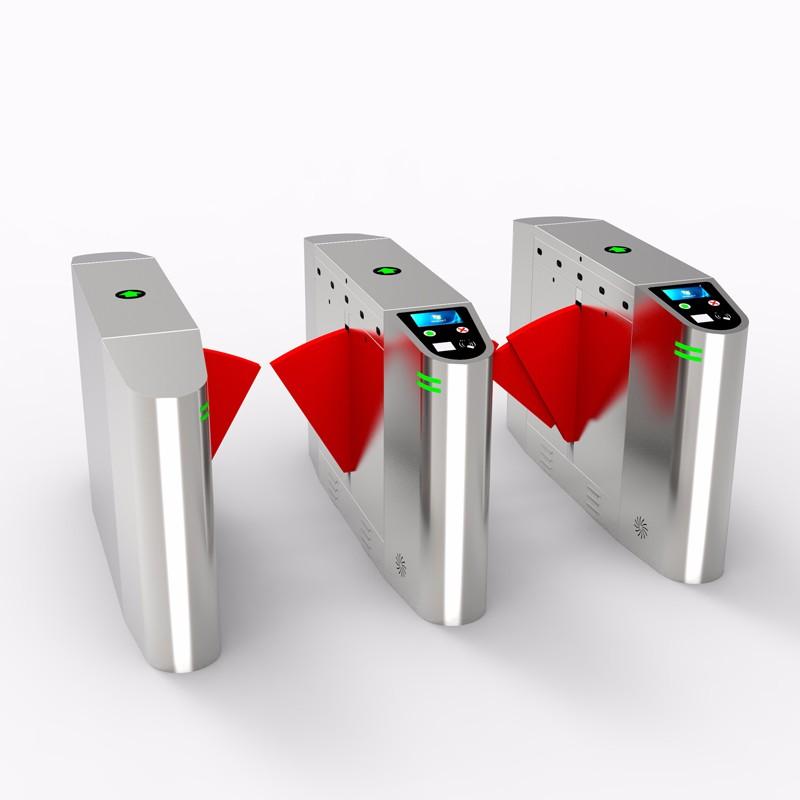

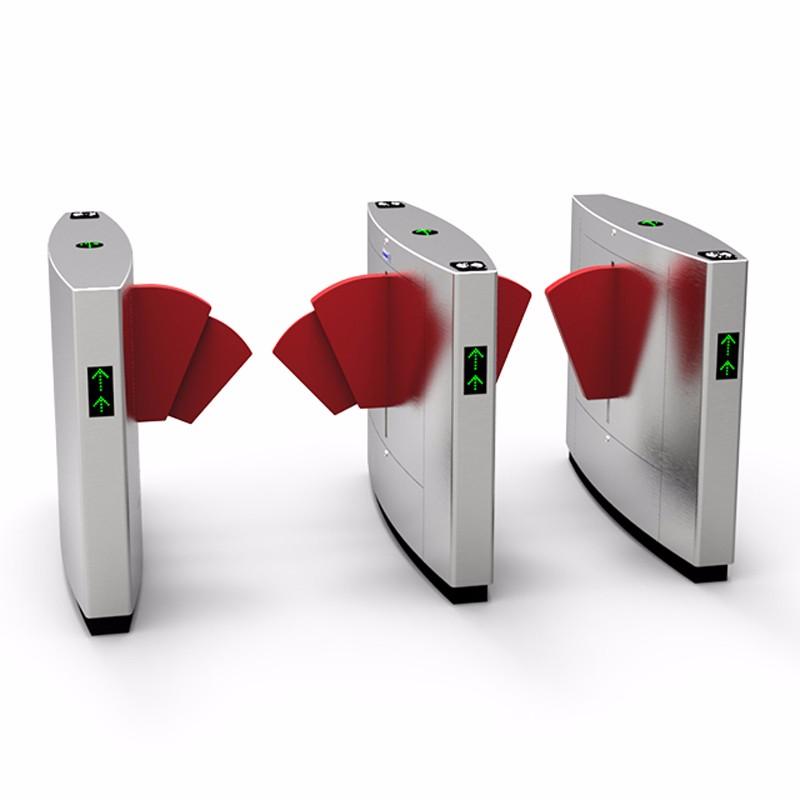

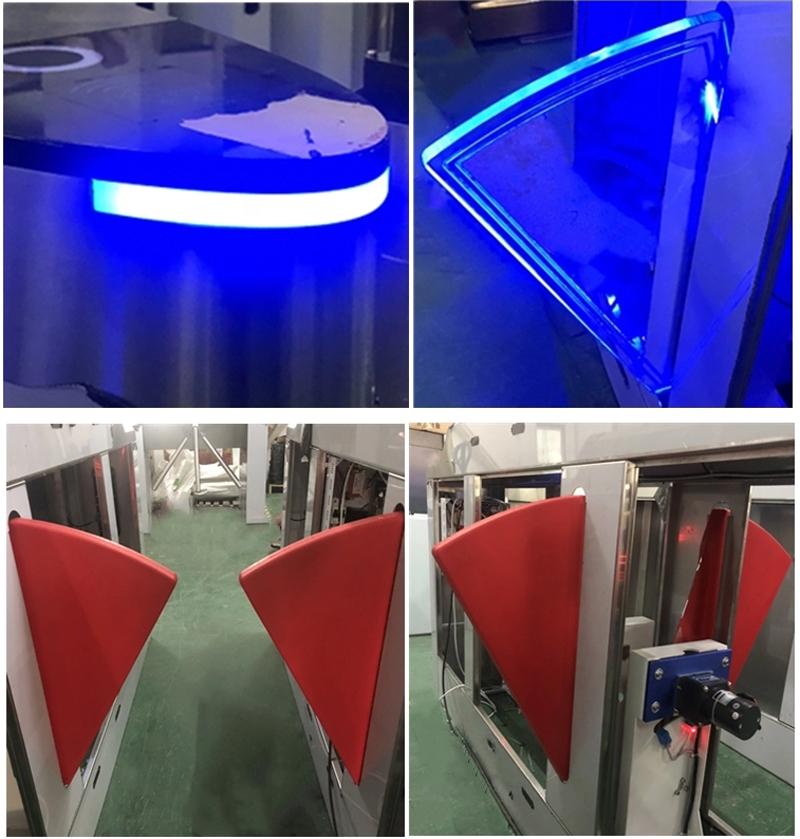

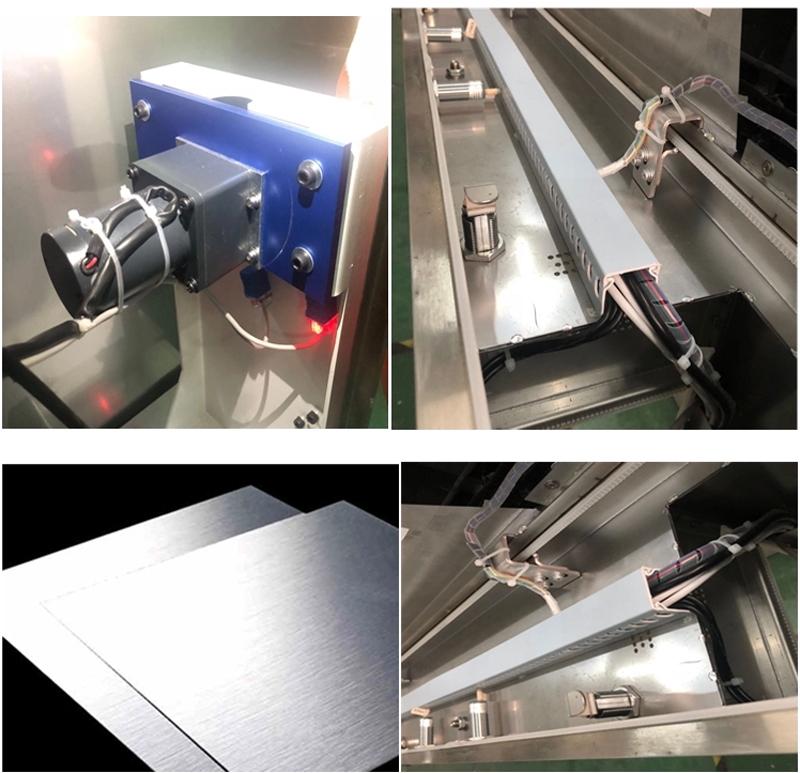

Flap Barriers Turnstile Detail Photos:

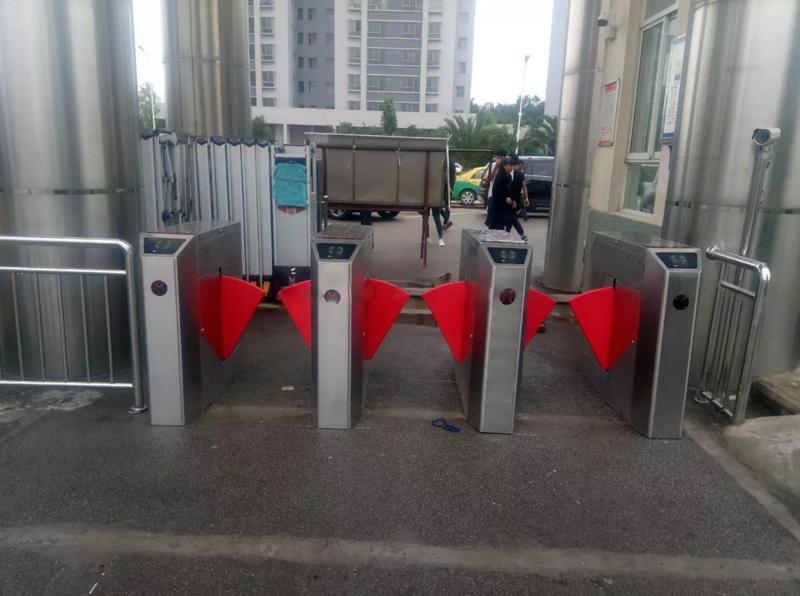

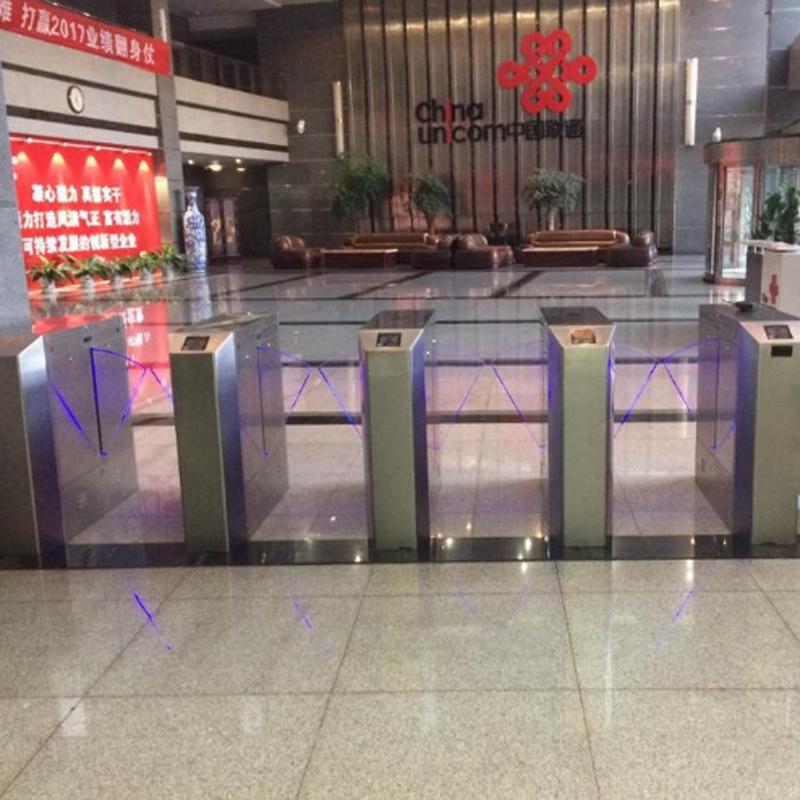

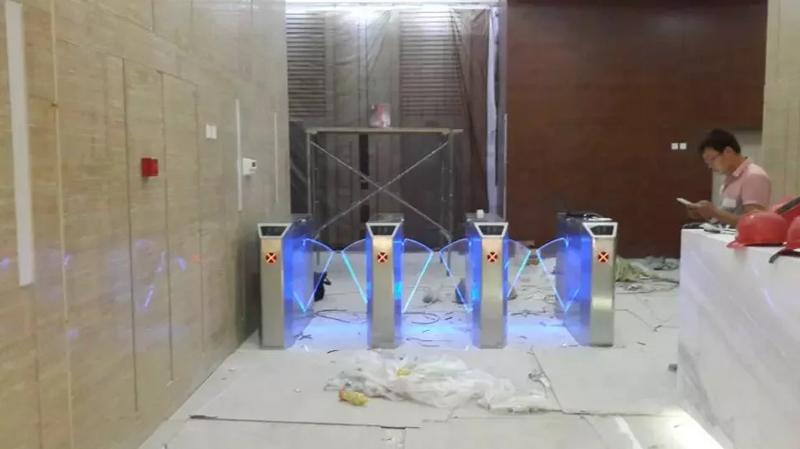

Flap Barriers Turnstile Application Cases:
Flap Barriers Turnstile Packing Picture:
