Description
Technical Parameters:

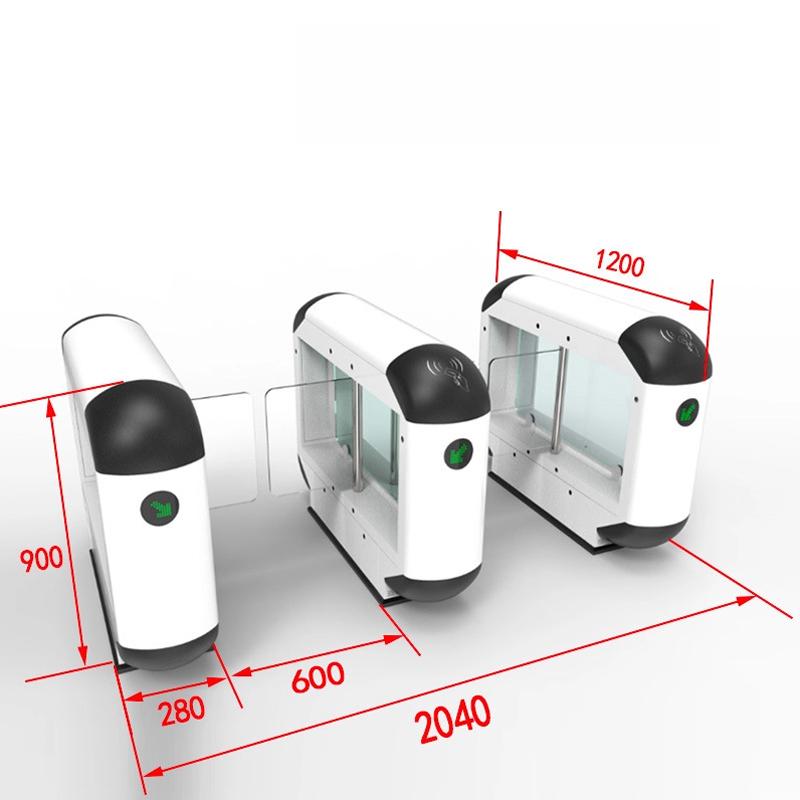

product size |
1200(Length)*300(width)*980(height)mm |
Passage width |
≤550mm |
material |
AISI 304 stainless steel |
swing material |
Toughened glass (20mm) |
MCBF |
over 5,000,000 |
Power Supply |
AC 220V |
power consumption |
static state <50W,dynamic state <150W |
Frequency |
50~60Hz |
Unlock time |
0.2s |
Throughput rate |
30p/m |
Drive mode |
DC motor |
Infrared detection |
10 couple |
weight |
75kg |
Communication |
TCP/IP, RS485 |
working temperature |
-30℃—65℃ |
working humidity |
<95% |
Flap
Turnstile Function:
Reliable and durable, low noise and stable operation
Gate open automatically when power off to the
request of fire protection,
The wing gate installed Infrared sensor
interfaces, could be expanded to Infrared testing function.
Breakdown Self-checking and alarm indication,
easy for maintenance and using;
Passage in both directions electronically
controlled
Automatically reset function

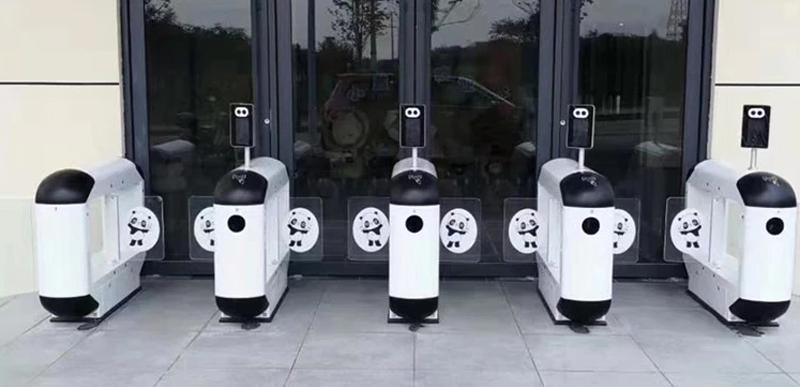

Application Case:

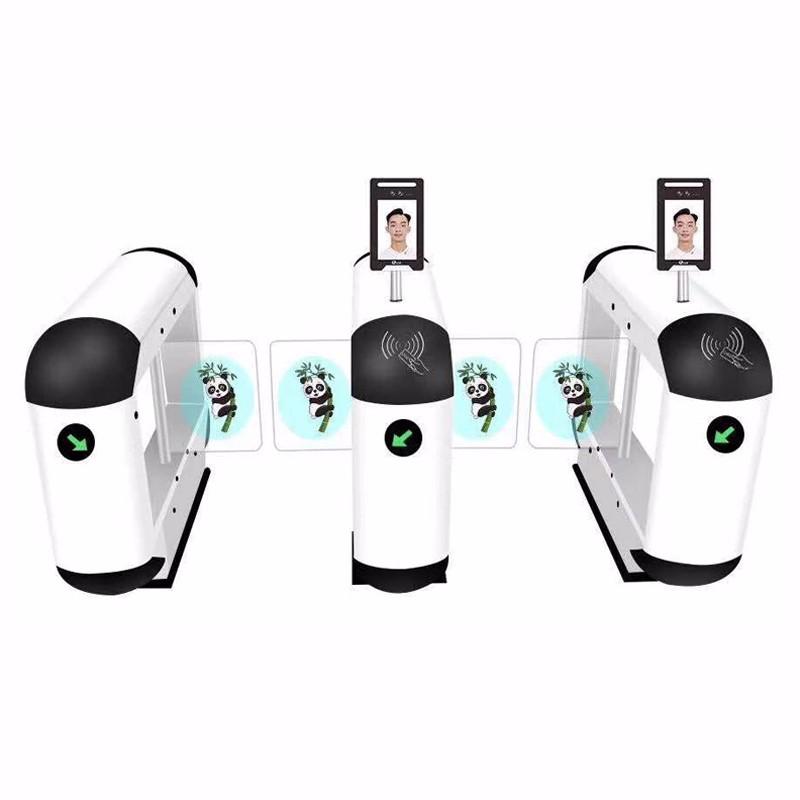

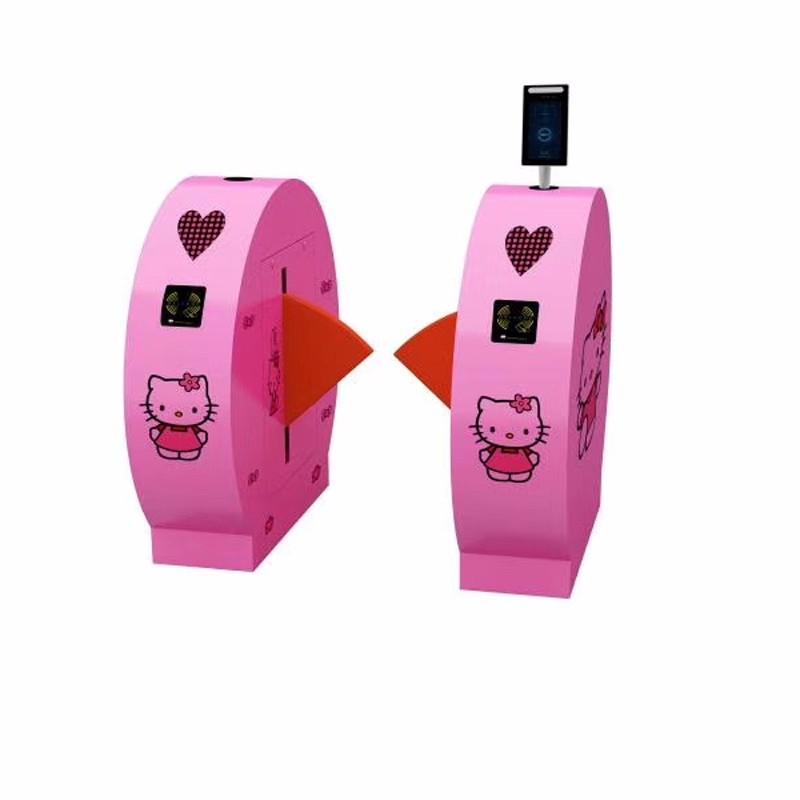

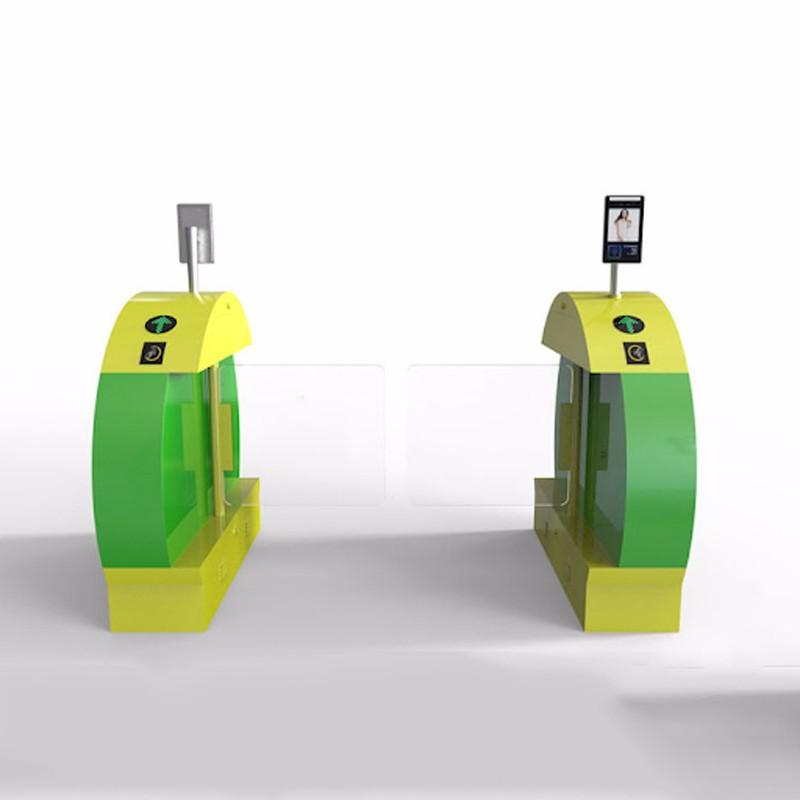

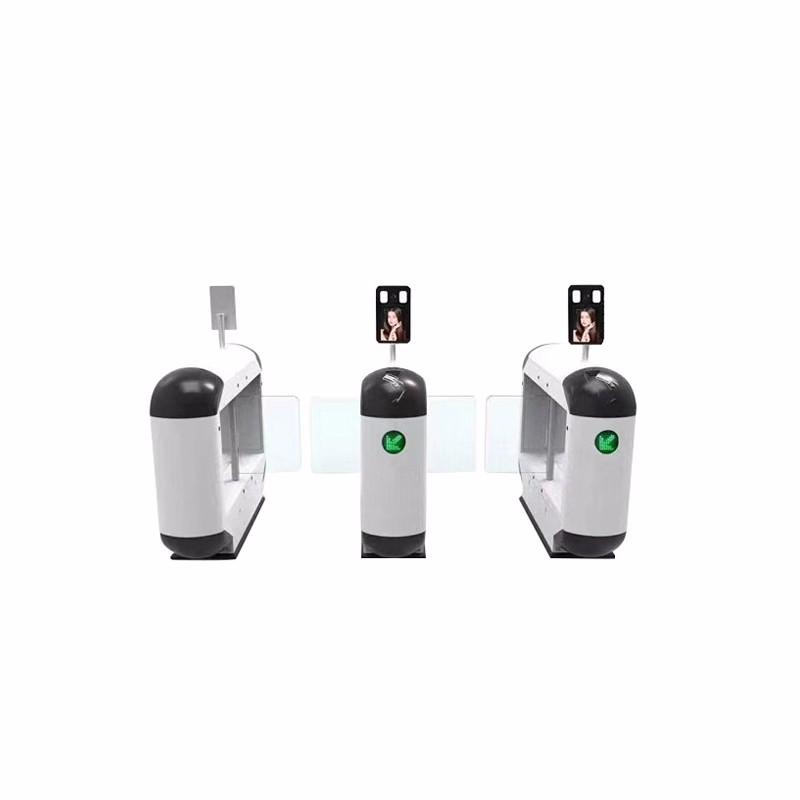

Produce Photo:
