Description

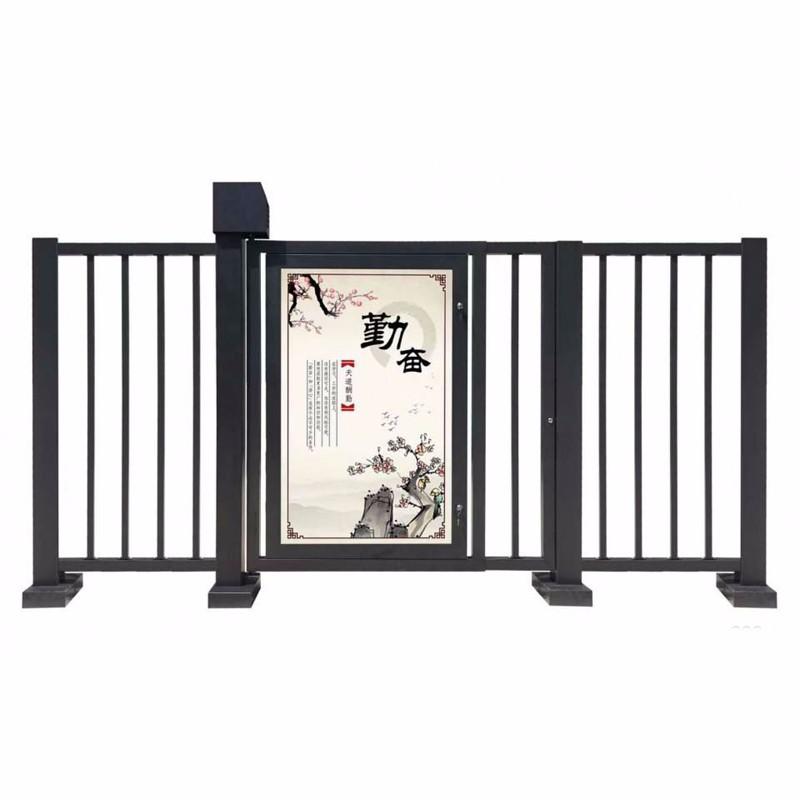

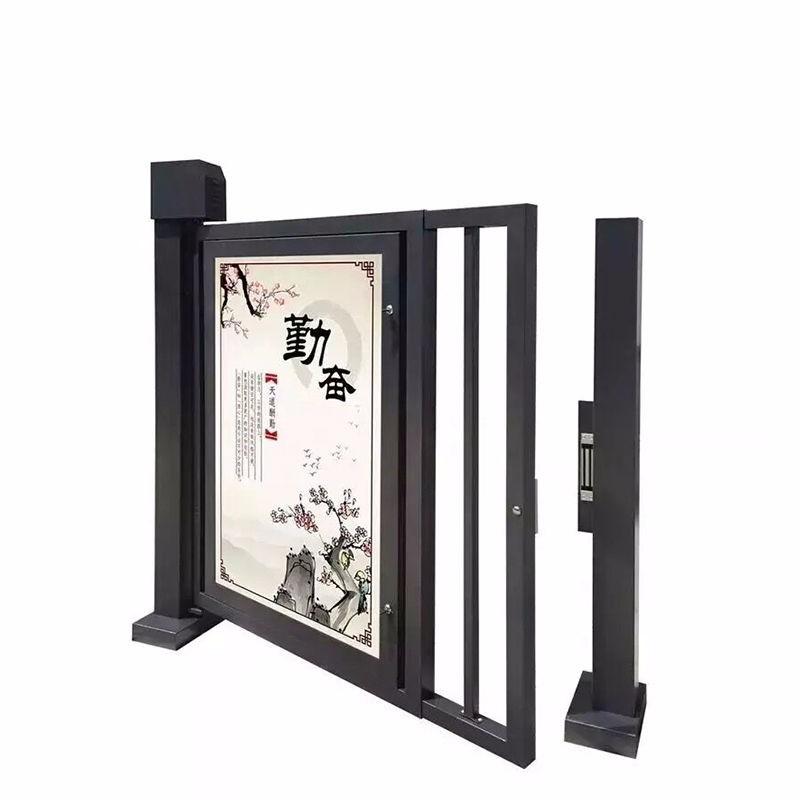

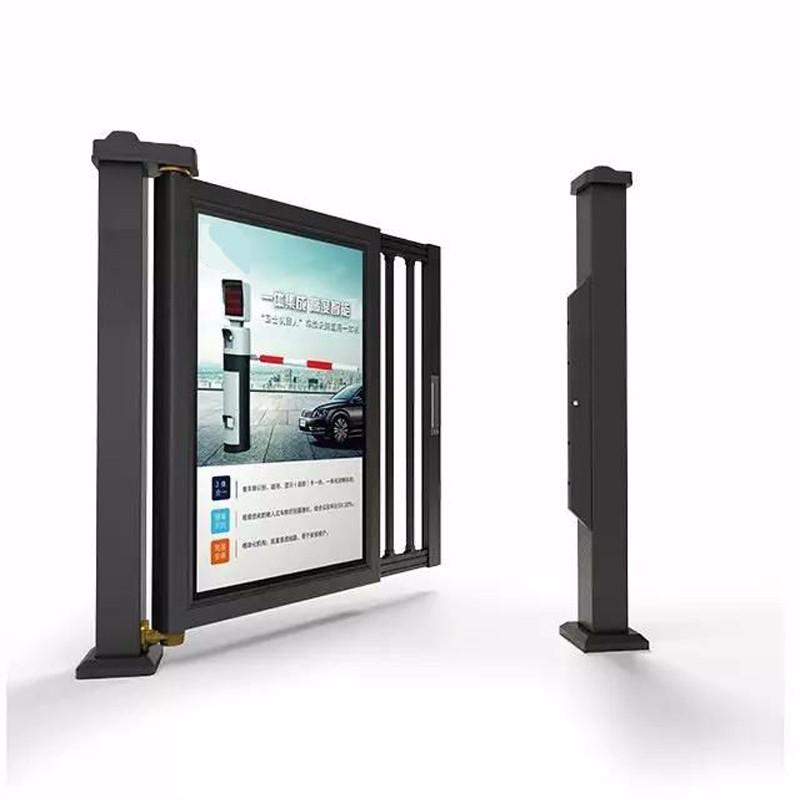

The pedestrian channel advertising door is a new product, which combines traditional iron door and advertising lamp box. Advertising door applies: residential areas, scenic spots, commercial centers, stations, residential areas and other occasions.
Features:
1. Full automatic, closing time can be adjusted (1 ~ 120 s)
2. With anti-pinch function, bouncing back when meeting resistance
3. Size can be customized (1.2 ~ 1.85 meters)
4. With light sensors, light turning on during night time
5. Made from 2 mm thickened cold rolled steel, with special spraying treatment on surface, bring better anti-corrosion ability
6. Advertising poster sandwiched between two piece of thick glass plates, with rain-proof function
7. Compatible with various systems, can be attached with card scanning, password, fingerprint recognition, face recognition, remote control and other management systems
8. Magnetic lock with 280 kg strong suction.
Product parameters:
Product name |
Electric advertising door |
Power supply |
220 V±10% 50 Hz |
Rated current |
< 1A |
Maximum power |
45 W |
Standby power |
≤ 6W |
Working temperature |
-40℃ ~ 85℃ |
Life span |
> 3,000,000 times |
Weight |
75 ~ 100 kg |
Electric lock output |
12V, 500mA |
Closing time |
3 ~ 8 s |

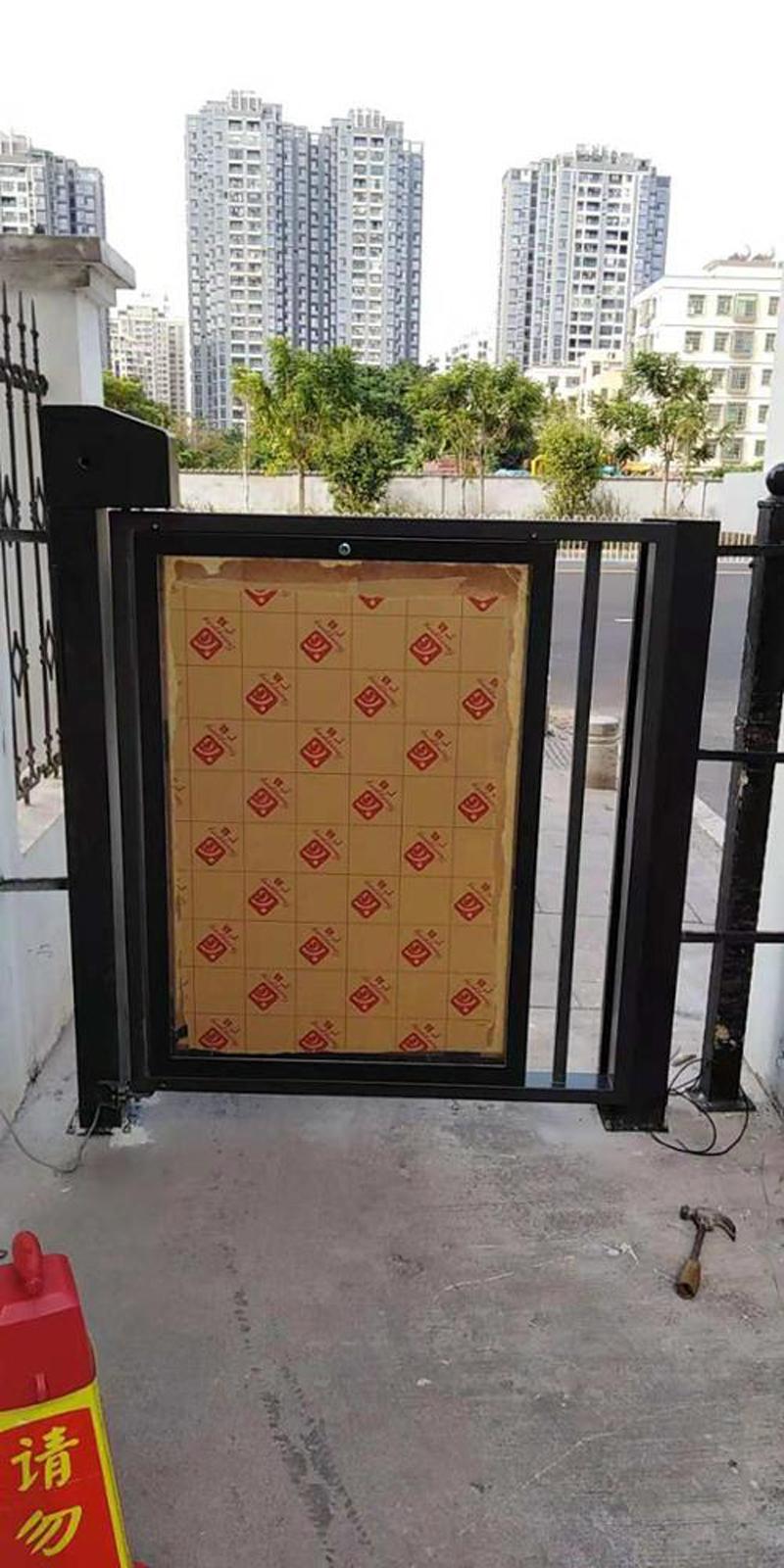

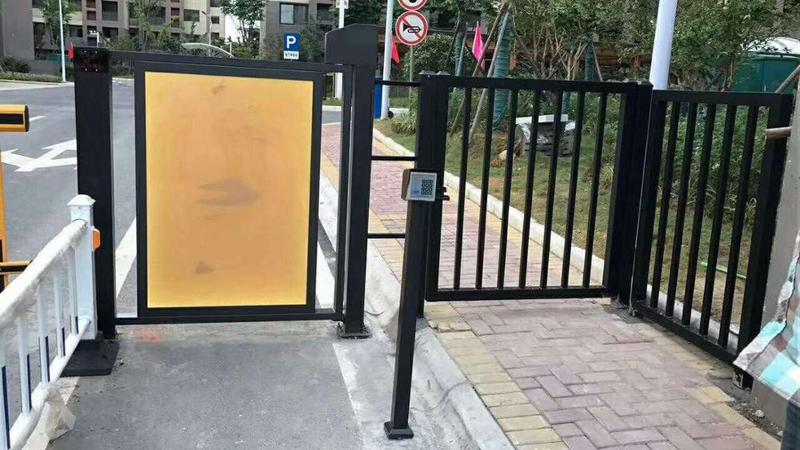

Application Case:
