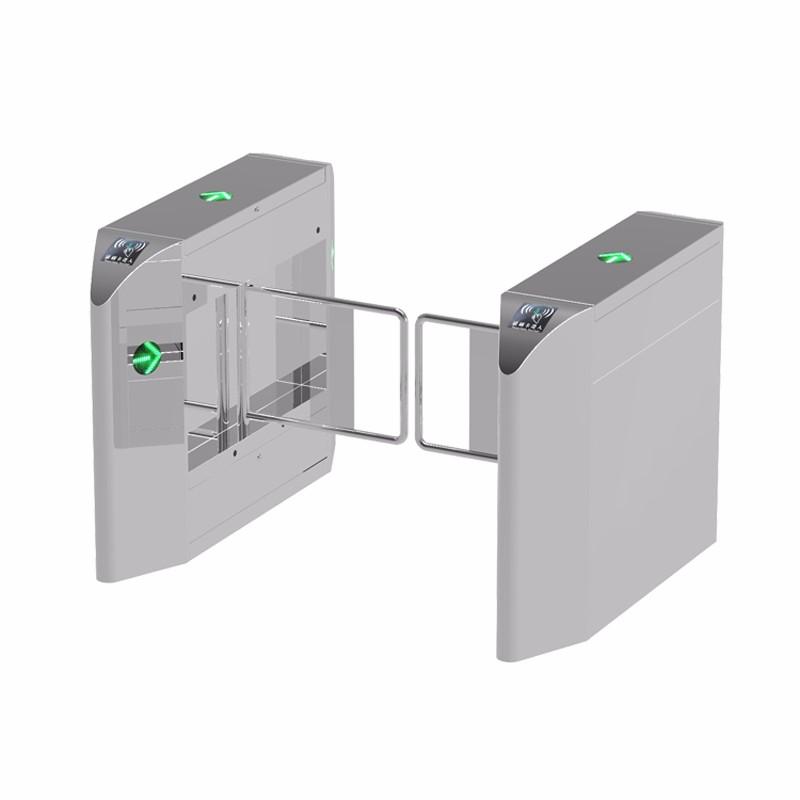

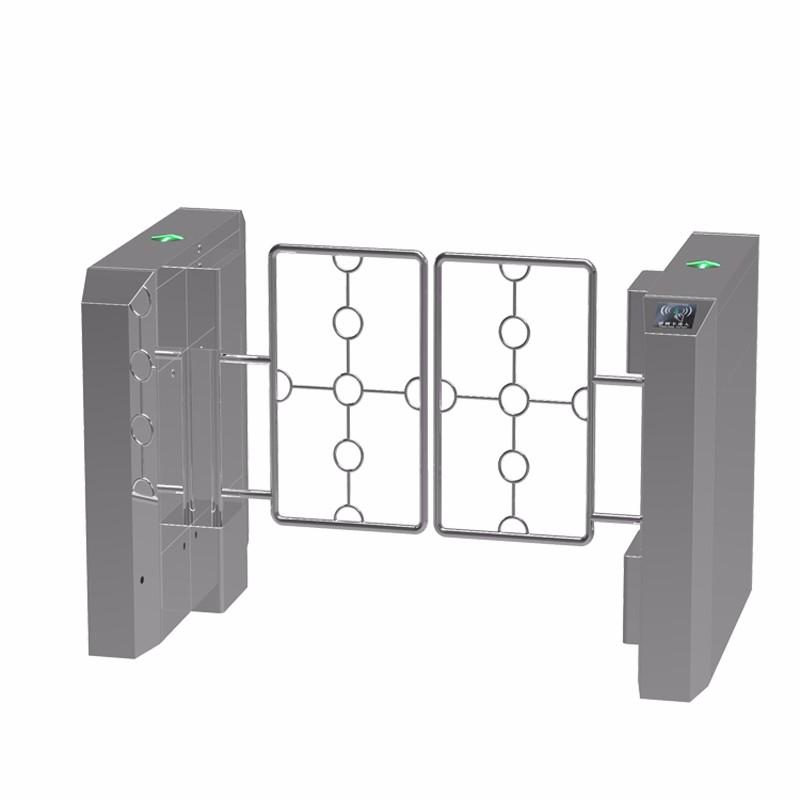

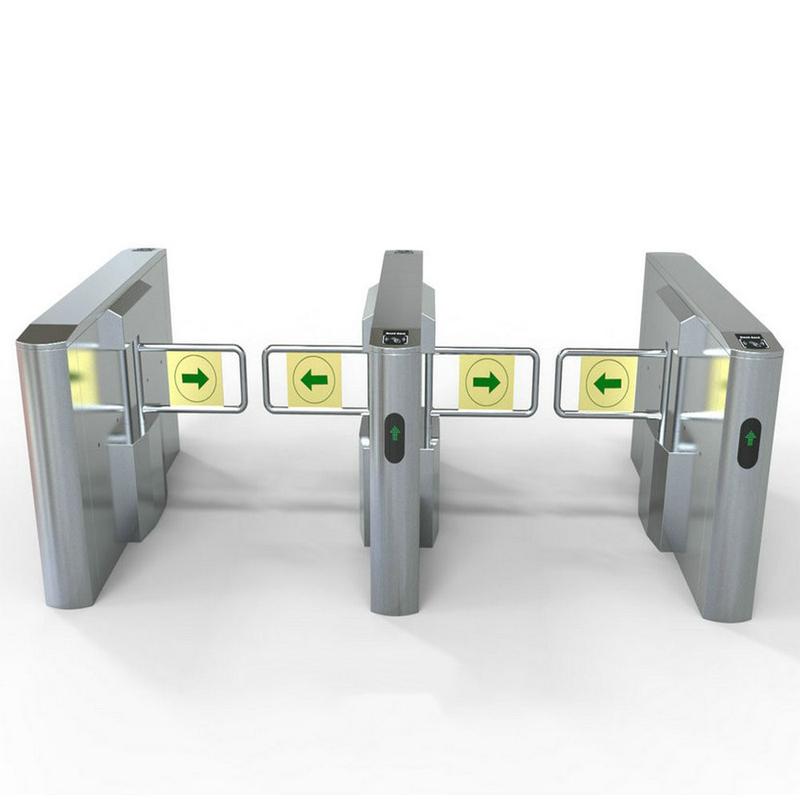

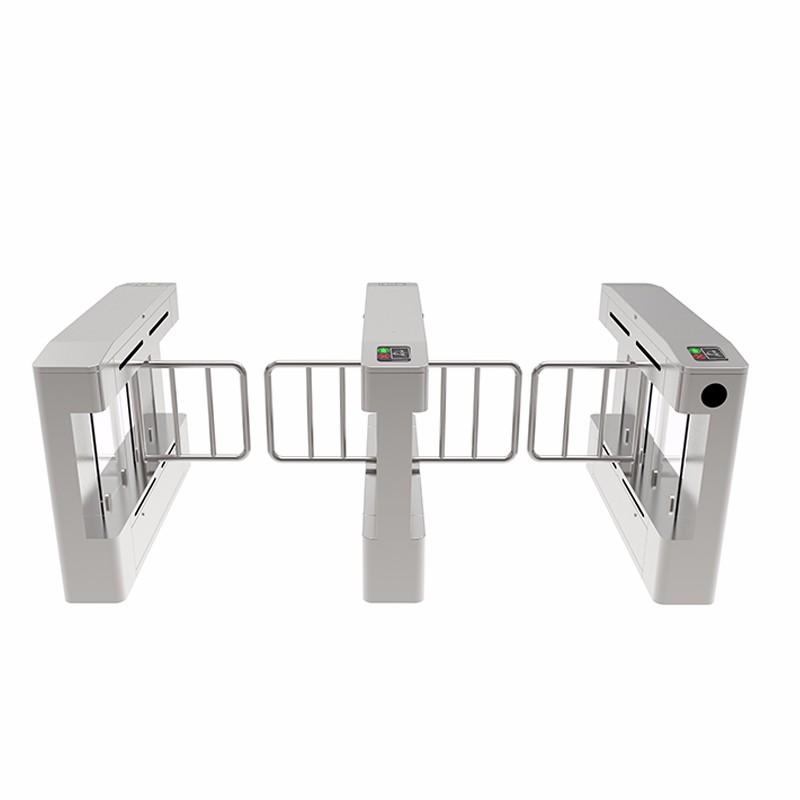

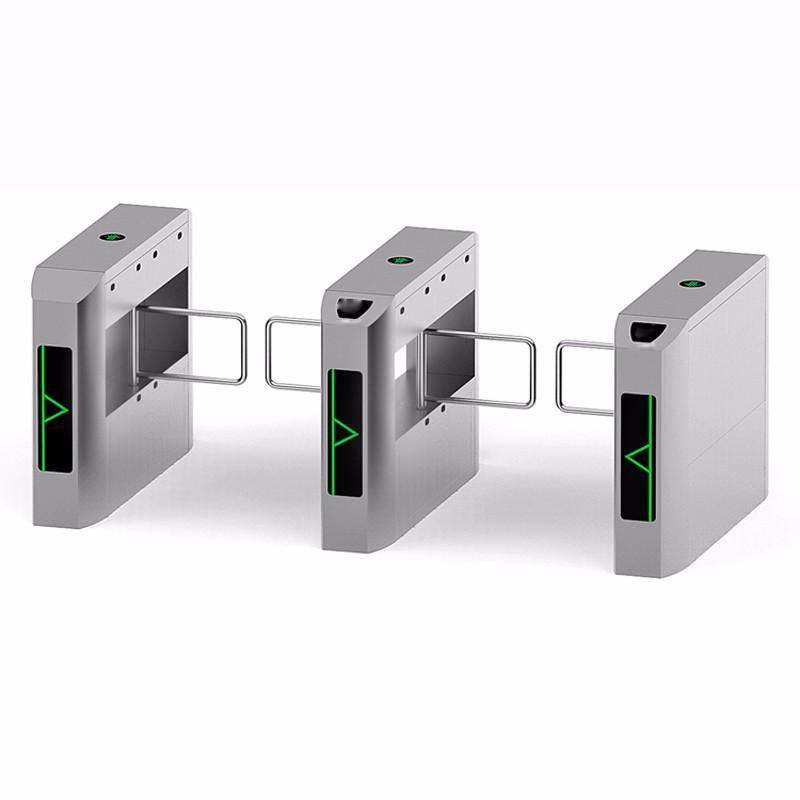

Entrance exit security automatic fast speed gate swing barrier turnstile with access control RFID electronic turnstile

Description

Application:

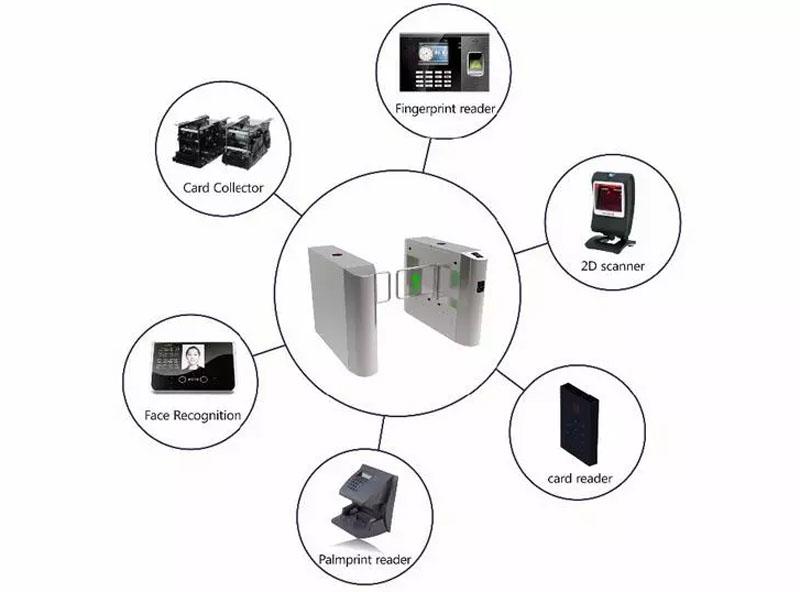

Luxury Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Function:

1. working method can be set by the buttons on the main panel

2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg. 3.Anti-illegal in, anti-intrusion, auto close for reverse direction.

4. Anti-collision, gate closes when no valid signal is given.

5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.

6. Gates can be synchronous

7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.

8. Reset function by photocells, 4 or 6 pairs.

9. Anti-pinch function by photocells, 4 pairs

10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

11. One way or two way control

12. Unit can be controlled and administered by remote control

13. Led lamp indicator



Extensible functions:

1. LED counter display

2. Casing and gate size can be lengthened

3.Logic judgment by photocells (8 pair or 10 pairs)

4. Speech reminder

5.normal close or normal open adjustable

6. Light, sound alarm



Technial Datasheet:

Material	304 Stainless Steel
Dimension	1200×280×990 mm
Dry contact	12V
LED indicating light	One
Card-reading window	Two
Relative power	120W
Operating temperature	-25℃ ~ +60℃, RH ≤90%
Relative humidity	≥90%RH
Comunication Interface	RS485,distance ≤1200m
Power supply	AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed	25 persons per minute

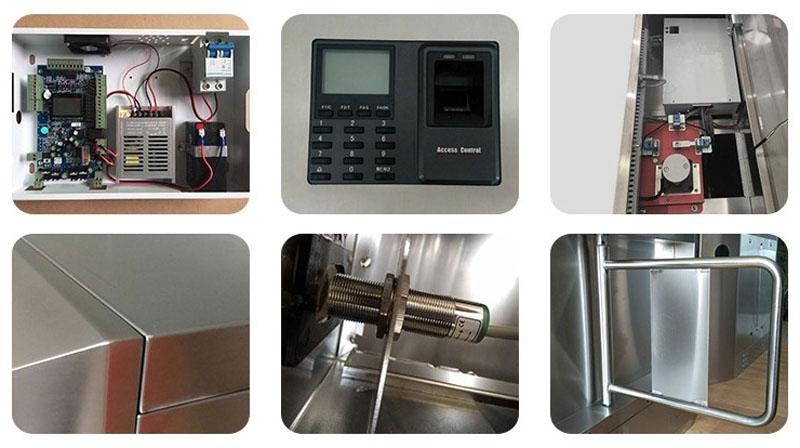

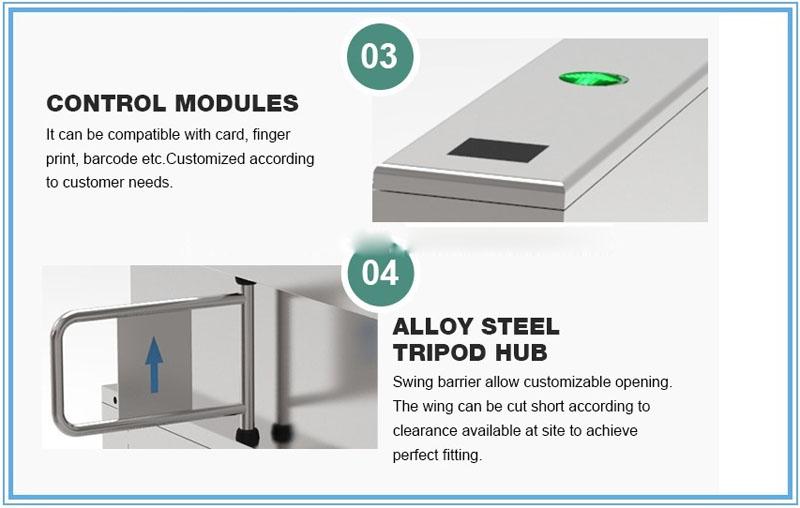

Detail Photo:

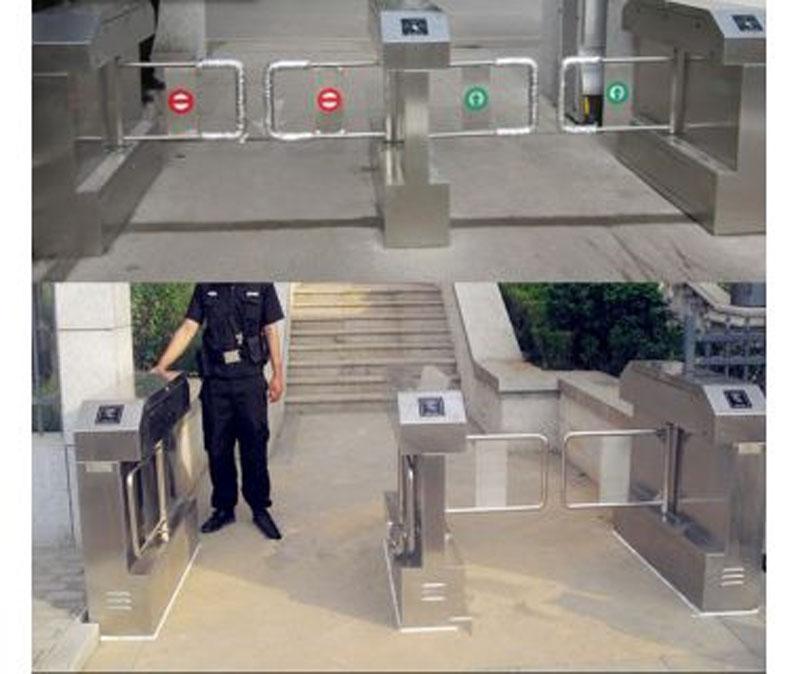

Application Cases:
